Automatic square bottom flat rope paper handle pasting machine

Name: Automatic square bottom flat rope paper handle pasting machine
Brand: Chancer
Price: 1 USD

Automatic square bottom flat rope paper handle pasting machine Manufactures

Brand Name : Chancer

Model Number : FY-888

Certification : CE

Place of Origin : CHINA

MOQ : 1SET

Price : Negotiable

Payment Terms : T/T

Supply Ability : 100sets per year

Delivery Time : 40 working days after getting 30% deposit

Packaging Details : seaworthy package

Paper Rope Length : 352mm

Paper rope length : 100mm

Bag height : 250-450mm

Bag width : 250-400mm

Type : Flat Paper handle pasting machine

Weight : 4900KG

Dimension(l*w*h) : L7000*W1600*H1500mm

Warranty : One Year

After-sales service provided : Engineers available to service machinery overseas

Power(w) : 10KW

Material : paper

Contact Now

Automatic square bottom flat rope paper handle pasting machine

Introduction:

This machine is mainly supporting semi-automatic paper bag machines,Through a complex process, it makes four cutted rolls of paper which have been cut into flat rope and flat handle once shaping,It can produce the flat paper handle on line ,and stick the handle on the bag on line too.

the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.

Technical Data

Overall dimension	L7000W1600H1500mm
Motor brand	Longbang geared motor
Total power	10KW,50HZ
Servo motor brand	Siemens
Servo motor power	750W one group
PIC programming brand	Siemens
Hot melt machine brand	Huangshang Taiwan
Mechanical arm	HIWIN Taiwan
Handle Spacing	84mm
Paper Rope Width	12mm
Paper Rope Height	100mm
Paper Width	40mm
Paper Length	152mm
Paper Rope Length	352mm
Paper thickness	80-140g
Bag width	250-400mm
Bag height	250-450mm
Top opening size over 130mm	(Bag Width minus the width of folding )
Production speed	30-35pcs/min

Contacts:

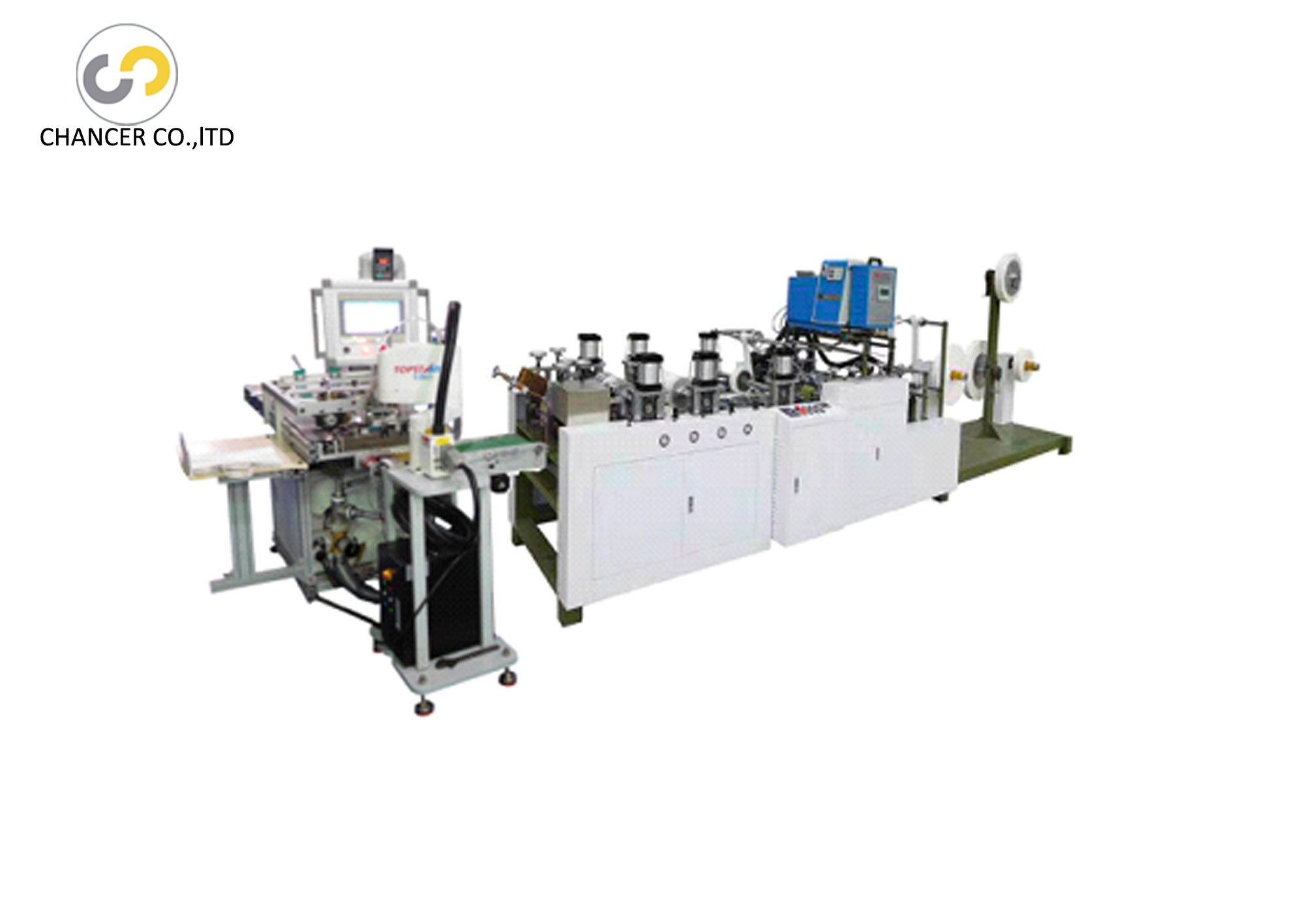

Machine picture:

Automatic square bottom flat rope paper handle pasting machine

Sample:

Automatic square bottom flat rope paper handle pasting machine
