Narrow width label rotary die cutting machine with slitting roll to roll

Name: Narrow width label rotary die cutting machine with slitting roll to roll
Brand: Chancer
Price: 7000 USD

Narrow width label rotary die cutting machine with slitting roll to roll Manufactures

Brand Name : Chancer

Model Number : FQ-320Y

Certification : CE

Place of Origin : CHINA

MOQ : 1set

Price : USD 7000 per set

Payment Terms : T/T

Supply Ability : 100sets per year

Delivery Time : 30days

Packaging Details : seaworthy package

Max.width of roll : 320mm

Max.diameter of unwinding roll : 500mm

Max.diameter of Rewinding roll : 480mm

Contact Now

Narrow width label rotary die cutting machine with slitting roll to roll

USE:

FQ-320Y rotary die cutting and slitting machine adopt one group rotary die cutting station.This machine is suitable for die cutting and slitting for blank label.It is with auto.length account,length set, auto.stop,web guiding etc fuction. The machine has advantage of high speed,high efficiency,accurate slitting,easy operation,stable running.

Main technical parameter:

Slitting speed	75m/min
Die cutting speed	70m/min
Die cutting girth	228.6-400mm
Max.width of roll	320mm
Max.diameter of unwinding roll	500mm
Max.diameter of Rewinding roll	480mm
Overall size	170011801530mm
Weight	750KG
Main motot power	1.5KW

Contacts:

Narrow width label rotary die cutting machine with slitting roll to roll

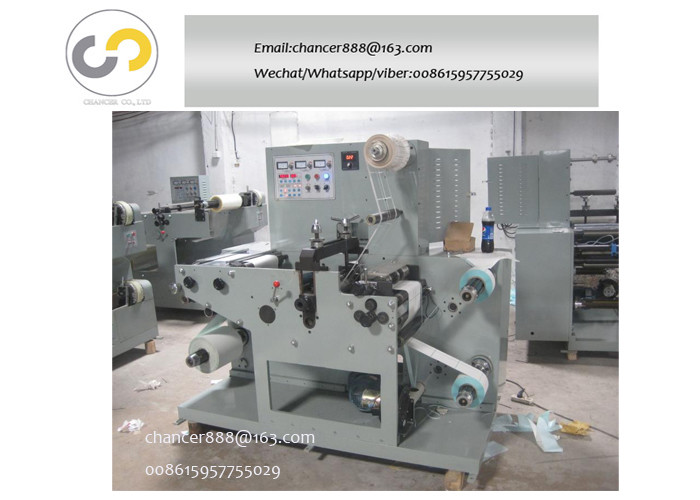

Machine picture:

Narrow width label rotary die cutting machine with slitting roll to roll

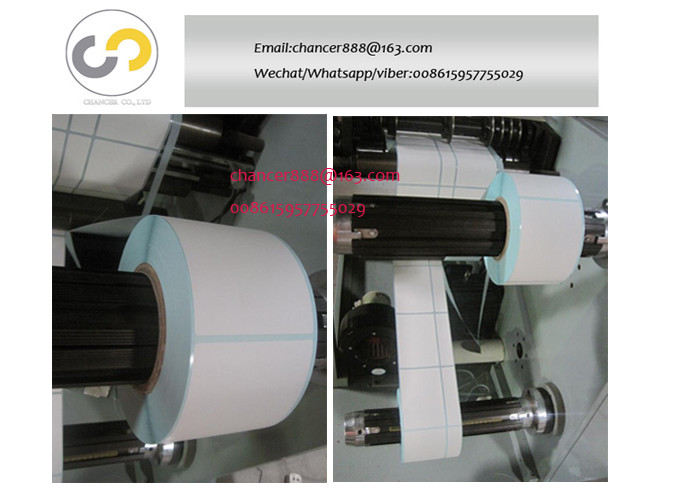

Sample picture:

Narrow width label rotary die cutting machine with slitting roll to roll
